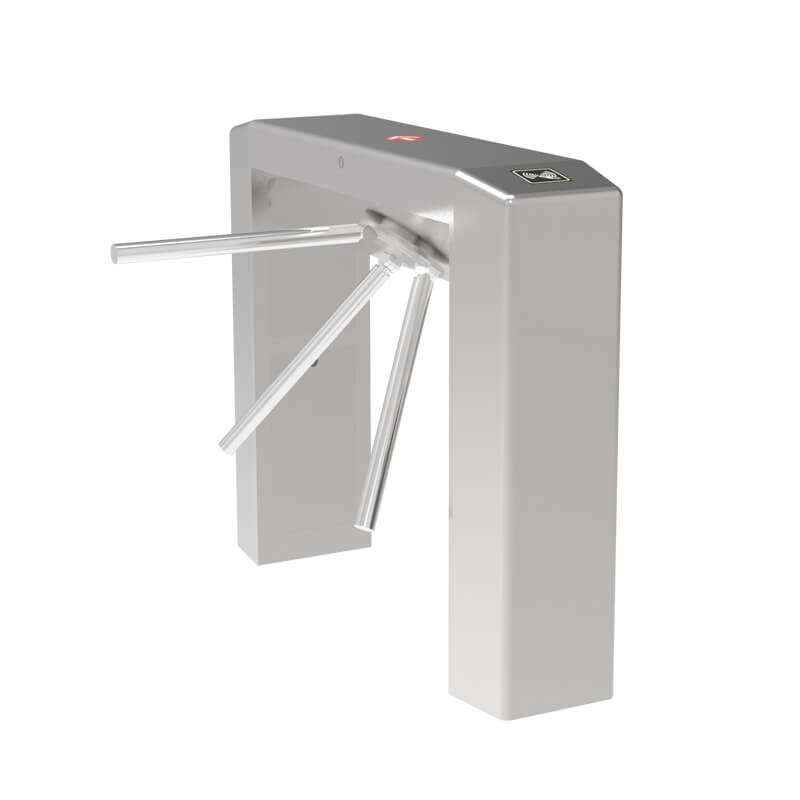

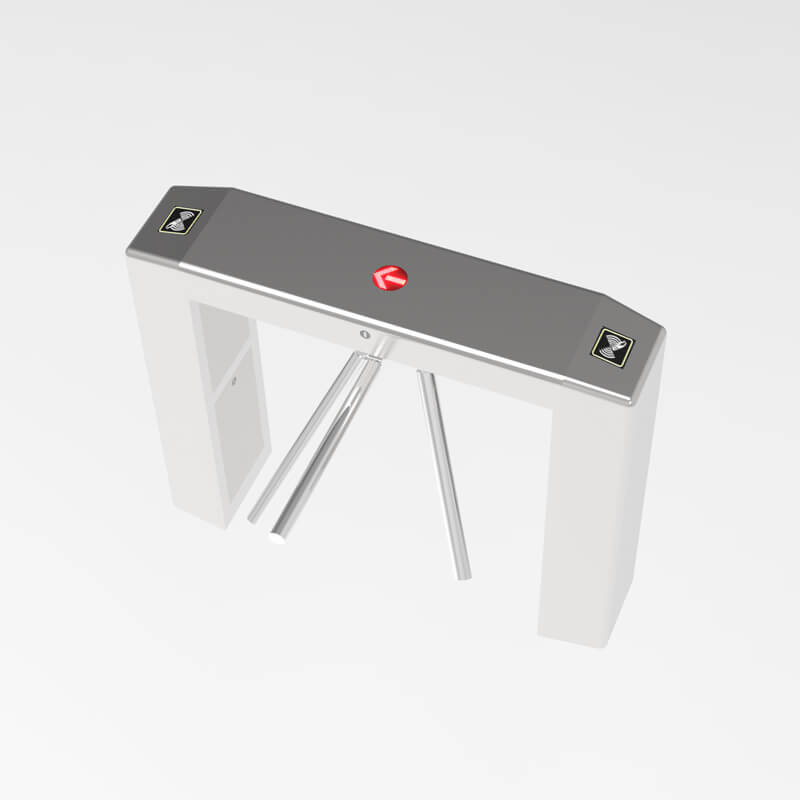

Security Entrance Tripod Turnstile Electronic and Automatic Tripod Turnstile

Description

Key Features and Benefits:

• Advanced Hydraulic Kinetic Buffering Technology: Experience exceptionally fast and smooth operation. This integrated technology minimizes mechanical stress, ensuring extended product lifespan and consistent performance.
• Seamless Integration: Equipped with a standard input/output signal interface, the SG110 seamlessly integrates with all prevalent access control panels. This provides a versatile platform for comprehensive entrance control solutions, supporting various authentication methods including face recognition, card (RFID 125 KHz / 13.56 MHZ), fingerprint, QR code, and barcode.
• Intuitive User Experience: Clear LED directional indication and status lights guide users for efficient passage, enhancing pedestrian flow and reducing potential bottlenecks.
• Enhanced Safety & Security:
  • Mechanical Fail-Safe Mode: In the event of a power failure, the tripod arms automatically drop, ensuring unobstructed emergency egress and compliance with safety regulations.
  • Positive Action Lock: Prevents simultaneous dual passage, ensuring one-person-at-a-time entry for enhanced security and accurate headcount.
  • Anti-Illegal Entry with Forced Rotation: Capable of withstanding up to 80kg of direct force, this feature actively deters unauthorized attempts to bypass the turnstile.
  • Anti-Tailgating Mechanism: When the turnstile arms rotate beyond 60 degrees, a mechanical override system activates automatically, effectively preventing unauthorized follow-through and ensuring singular passage.
  • Emergency Override: A dedicated emergency button is available to instantly trigger unblocked access during critical situations.
• Unmatched Durability and Reliability: The unique tripod design ensures inherently safe and reliable operation. Constructed from high-quality stainless steel, the SG110 is built to last, boasting a remarkable lifespan of over 5 million cycles, minimizing maintenance requirements and maximizing return on investment.
• High Throughput Capacity: With a transit speed of 35 persons per minute and a total capacity of 50,000 users, the SG110 can efficiently manage large volumes of pedestrian traffic.
• Two-way Audio & Weatherproof Design: Offers enhanced communication capabilities and a robust design suitable for various indoor and outdoor environments, making it a versatile solution for diverse applications.
• 1-Year Guarantee: Backed by a comprehensive 1-year warranty, ensuring peace of mind and product reliability.

How it Works (Working Principle):

The SG110 Tripod Turnstile operates on a sophisticated electro-mechanical principle. Upon receiving a valid authentication signal (e.g., from an RFID card reader, biometric scanner, or QR code scanner), the internal control board actuates an electromagnetic locking mechanism. This briefly disengages the positive action lock, allowing the tripod arms to rotate freely in the permitted direction. The integrated hydraulic kinetic buffering system ensures a smooth and controlled rotation of the arms, preventing abrupt movements and enhancing user comfort. As a user pushes through, the arms rotate, and once the passage is complete, the internal sensors detect the arm’s full rotation, re-engaging the lock to prevent tailgating or unauthorized subsequent entries. In a power failure scenario, the fail-safe mechanism automatically releases the arms, allowing them to drop and create a clear emergency exit path, upholding critical safety standards. The system’s bi-directional capability is achieved by allowing the control board to grant access in either direction based on the authenticated input.

Technical Specifications:

• Model Number: SG110
• Dimensions: L1200 x W280 x H1000mm
• Material: Stainless Steel
• Power Supply: 220V
• Frequency: 125 KHz / 13.56 MHZ (for card readers)
• Card Type Supported: RFID Card
• Support: Face, Card, Fingerprint, QR Code, Barcode
• Transit Speed: 35 persons/min
• Capacity: 50,000
• Warranty: 1 Year Guarantee
• Special Features: Two-way Audio, Waterproof / Weatherproof
• Place of Origin: China

The SG110 Tripod Turnstile represents a cutting-edge solution for reliable, secure, and efficient pedestrian access management, designed to meet the demands of modern facilities.
